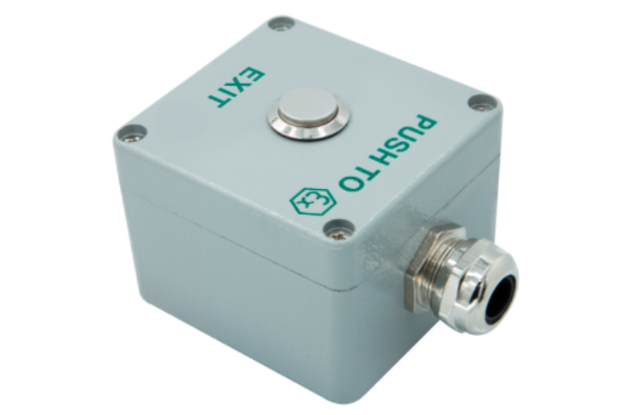

EPPB-814E-EX Explosion-Proof Push Button

EPPB-814E-EX Explosion-Proof Push Button

Home
EPPB-814E-EX Explosion-Proof Push Button

EPPB-814E-EX Explosion-Proof Push Button

Brochure PDF
Brochure PDF

It is designed for mounting on interior doors in hazardous areas, thus connecting explosion-proof access control systems for safe exit. It meets the requirements for CNEX national explosion-proof standards; it is durable and safe because of the strict production processes. This exit button has the waterproof rating of IP67 and can be completely sealed, using it indoors and outdoors, such as in industries like petroleum, petrochemicals, chemicals, oil depots, ships, drilling platforms, gas stations, ports, aerospace, military, healthcare, manufacturing steel, and processing food in explosive environments.

Loading...

Description

Product parameter                                        Parameter Description

Dimensions                                                   75Lx80Wx63.05H(mm)

Contact rating                                               3A@36VDC

Contact Output                                             NO

Material                                                         Zinc alloy housing

Waterproof Level                                          IP66

Operating temperature                                 -10 ~ +55°C (14 ~ 131F)

Durability test                                               100,00 tested

Accessory                                                      M16x1.5(4-8) Explosion-proof cable plug

Weight                                                          0.4kg

Certification number                                     ECM 23 ATEX-B DN89

ATEX                                                              || 1G Ex ib ||C T6 Gb  / || 2D Ex ib |||C T85°C/ T100°C Db

Advantages

  • Explosion-proof anticorrosive push button, with increased safety structure, the housing is made of zinc alloy material by die-casting, the button is made of metal material, with corrosion resistance, high strength, beautiful appearance, equipped with wiring terminals.
  • Application environment explosive gas environment and dust environment
  • Applicable place: It is used for the position of fine passage in the dangerous area of explosive gas environment, used with explosion-proof access control products
  • Installation method: Surface mount, connect to the explosion-proof box and safety zone through the explosion-proof iron pipe and explosion-proof hose
