Tyvox Air Sterilizer

Description

The TYVOX Air Sterilizer is designed to create a zone of clean,
filtered air for indoor environments. A powerful fan draws
surrounding air into the unit, where it passes through a
multi-stage purification system designed to reduce airborne
particles and pollutants.

TYVOX combines
5-in-1 air purification technology
consisting of a pre-filter, activated carbon filter,
HEPA filter, UV-C light and photocatalytic oxidation.

This combination helps capture fine particulate matter,
dust, allergens and other airborne contaminants while
also helping to reduce odors and improve indoor air quality.

Designed for rooms up to
355 sq. ft. (33 m²),
TYVOX also features simple three-speed controls,
a replaceable filter, filter replacement indication
and a magnetic filter cover for convenient maintenance.

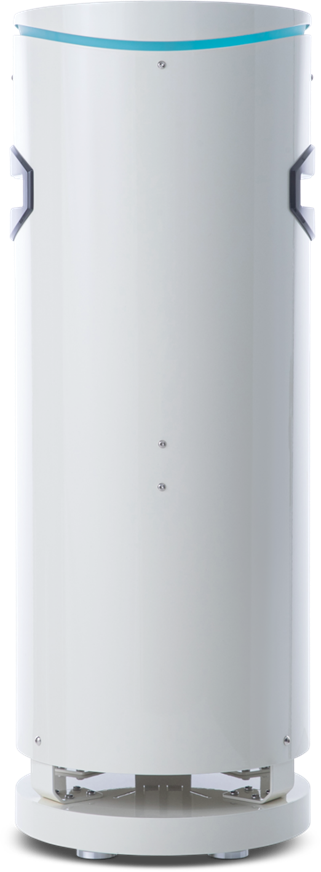

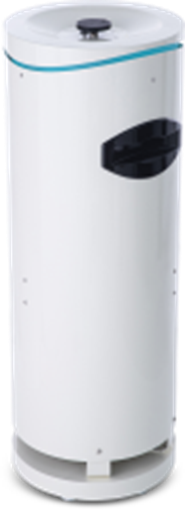

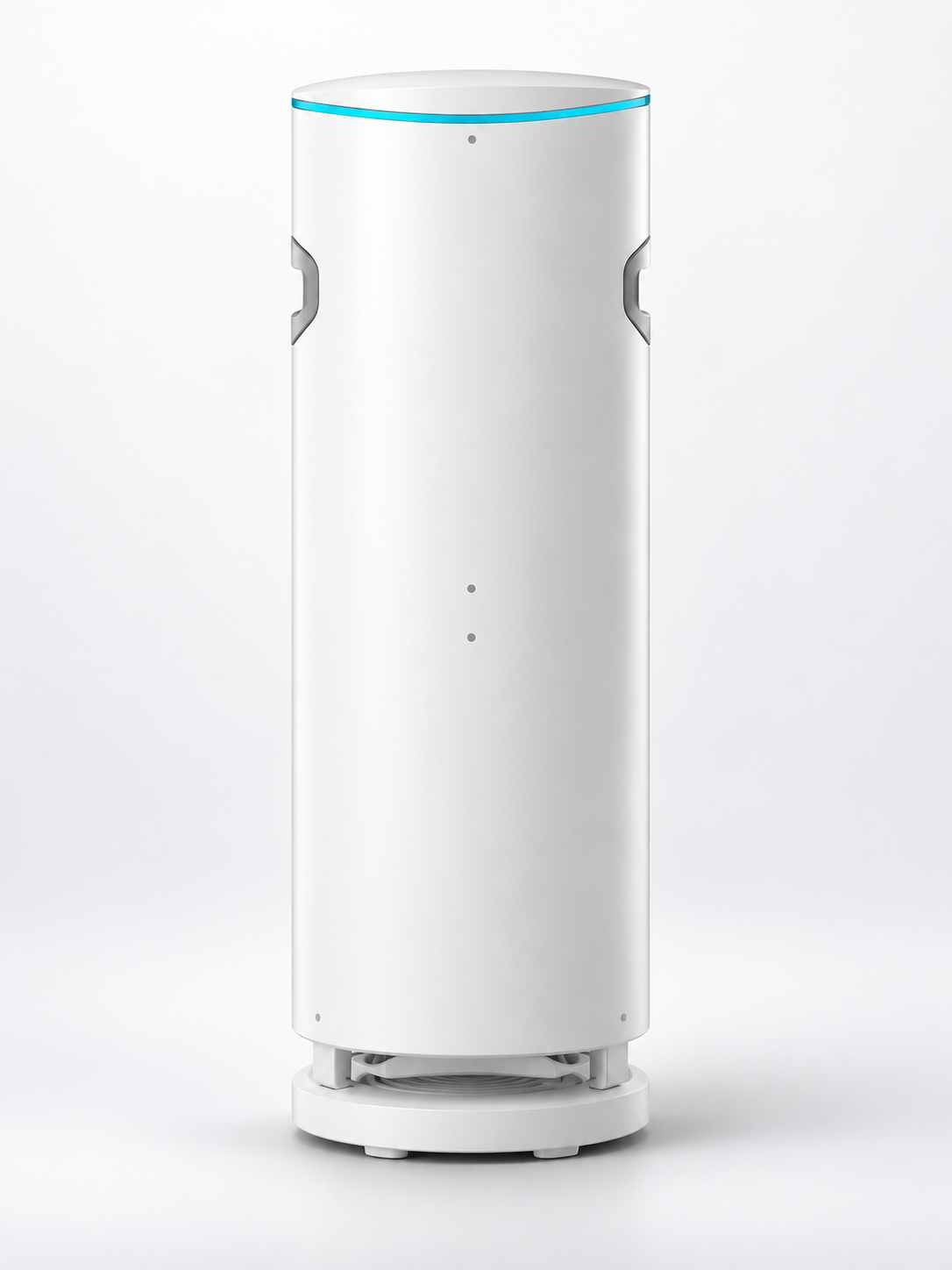

TYVOX Air Sterilizer

Product Parameter	Specification
Recommended Room Size	Up to 355 sq. ft. (33 m²)
Filter Life	3 to 6 months
HEPA Filter Class	H12
HEPA Filter Layers	43P
Power Consumption	DC 12 / 25 / 50W
Dimensions	Ø303 × 809 mm
Weight	17.6 kg (38.8 lb)
Country of Origin	Taiwan
Available Finishes	White / Black / Silver

Features & Maintenance

3-Speed Control

Simple three-speed controls allow the airflow level to be
adjusted according to the surrounding environment.

Room Coverage

Designed for indoor spaces of up to
355 sq. ft. (33 m²).

Filter Life

Recommended filter life is approximately
3 to 6 months, depending on operating
conditions and usage.

Filter Replacement Indicator

The unit includes a filter replacement indication to help
identify when filter servicing or replacement is required.

Convenient Filter Access

A magnetic filter cover provides convenient access to the
filtration system during routine maintenance.

Available Finishes

TYVOX is available in
White, Black and Silver
finishes to suit different indoor environments.

Maintenance Recommendation

Inspect the filter periodically and replace it according to its
condition and operating environment. Keeping the filtration system
properly maintained helps support consistent airflow and filtration
performance.

5-IN-1 TECHNOLOGY

5-in-1 Air Purification Technology

TYVOX uses a five-stage purification process designed to help reduce
airborne particles, odors and other indoor air contaminants.

Air passes through a combination of
Pre-Filter, Activated Carbon, HEPA filtration, UV-C light
and Photocatalytic Oxidation
before cleaner filtered air is circulated back into the surrounding environment.

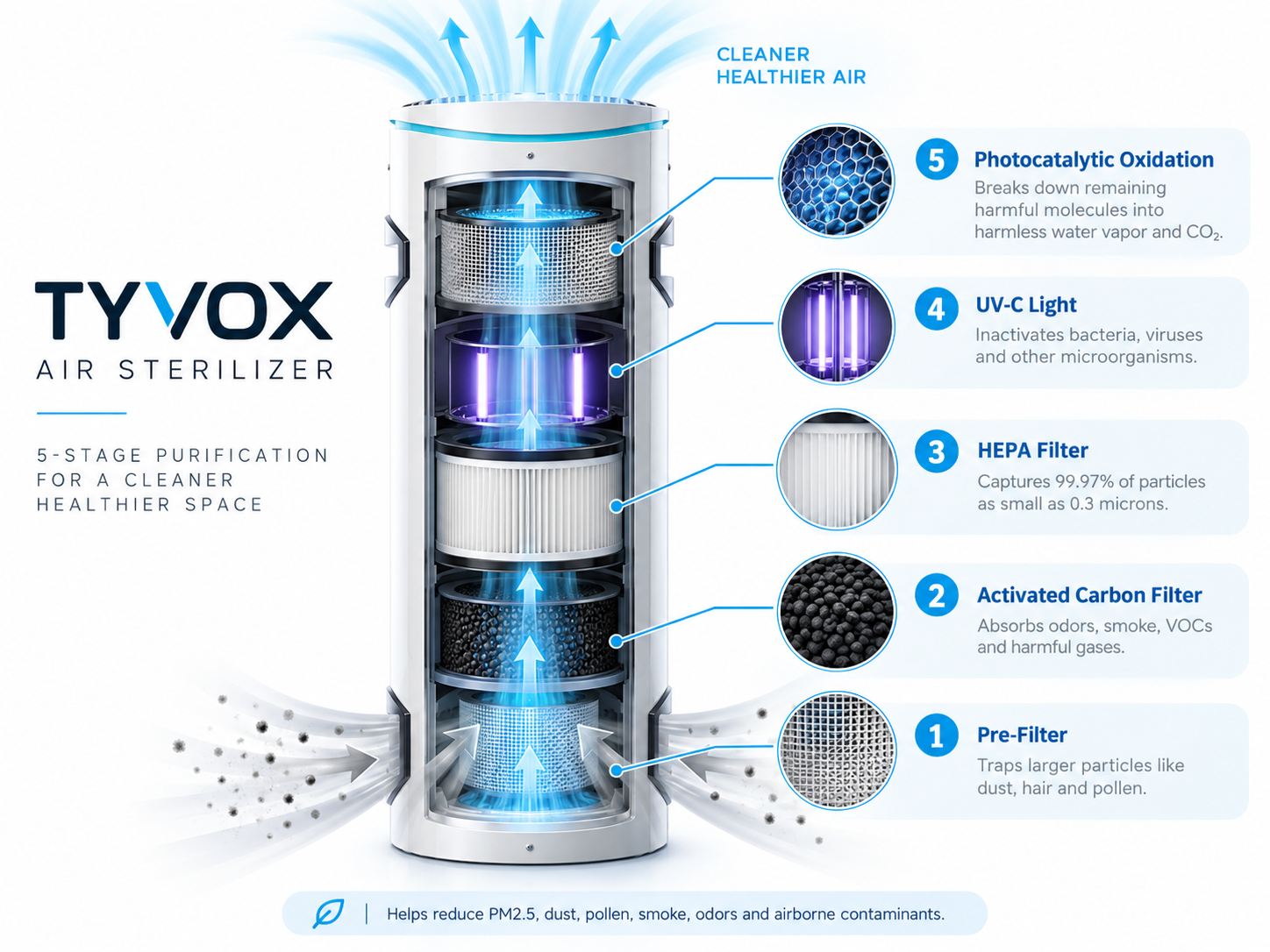

TYVOX Air Sterilizer 5-in-1 air purification technology

Pre-Filter
→
Activated Carbon
→
HEPA
→
UV-C
→
Photocatalytic Oxidation

Pre-Filter

The first filtration stage captures larger airborne particles
before the air passes into the main filtration system.

Activated Carbon Filter

The activated carbon filtration stage helps deodorize the air
and reduce unwanted odors as air moves through the system.

HEPA Filter

The HEPA filtration stage captures fine airborne particles,
including dust, mold and other particulate matter.

UV-C Light

TYVOX incorporates
16 UV-C LEDs
as an additional stage within its air purification process.

Photocatalytic Oxidation

Photocatalytic oxidation works together with UV-C as the final
stage of the purification process to help reduce odors and
airborne pollutants.

What Does TYVOX Help Reduce?

According to the TYVOX product documentation, the purification
system is designed to help reduce a range of common airborne
particles and indoor pollutants.

PM2.5

Dust

Dust Mite Allergens

Pollen

Smoke

Pet Dander

Mold

Cooking Pollutants

Odors

Formaldehyde

Performance may vary depending on environmental conditions, room size,
airflow and filter condition.

Applications & Tested Performance

TYVOX is designed for a variety of indoor environments where cleaner,
filtered air and continuous air circulation are required.

Where Can TYVOX Be Used?

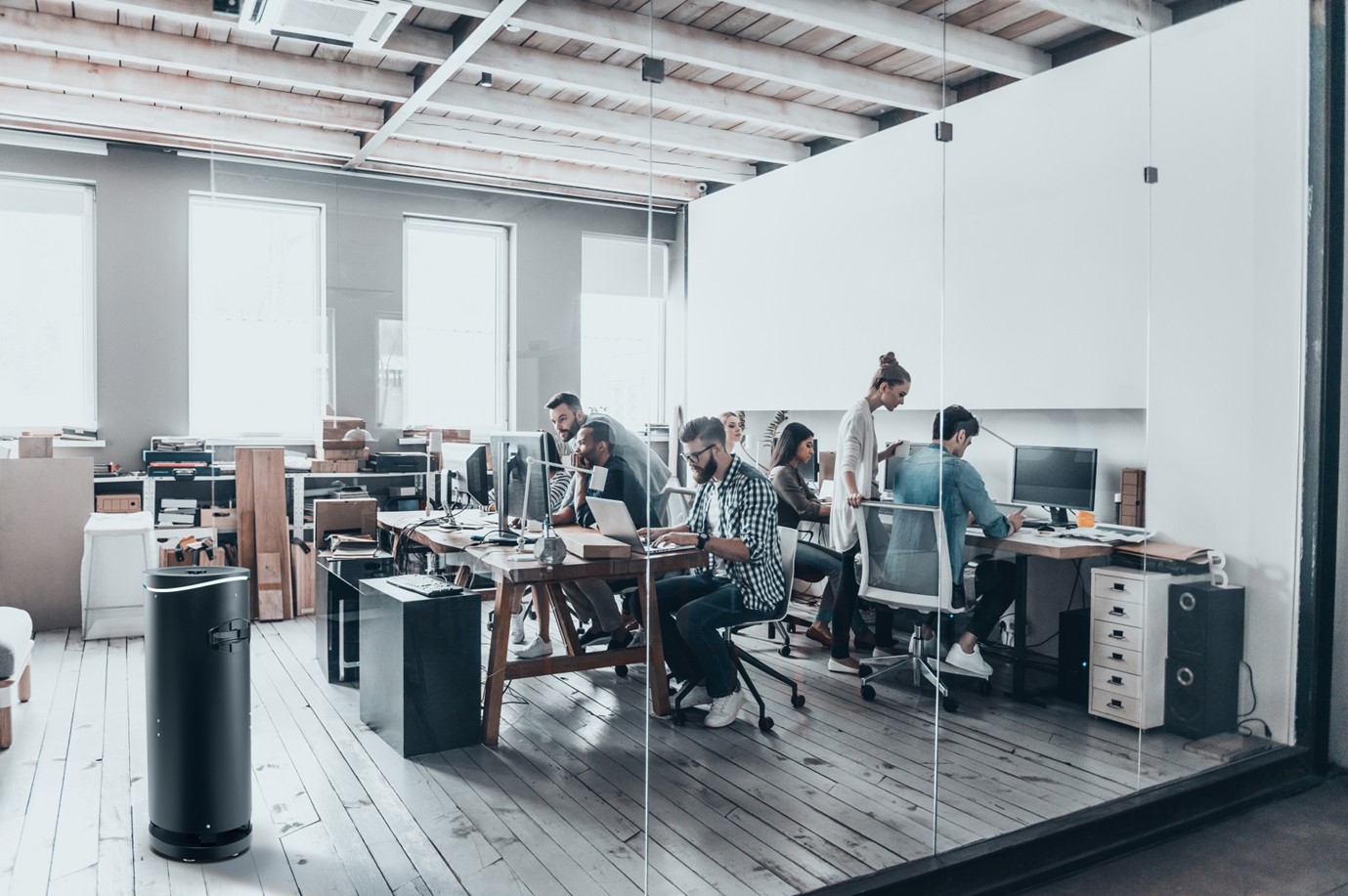

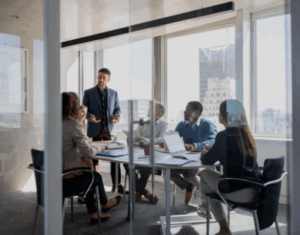

Office & Shared Workspaces

Suitable for offices, meeting rooms and other shared working
environments where air is continuously circulated throughout
the day.

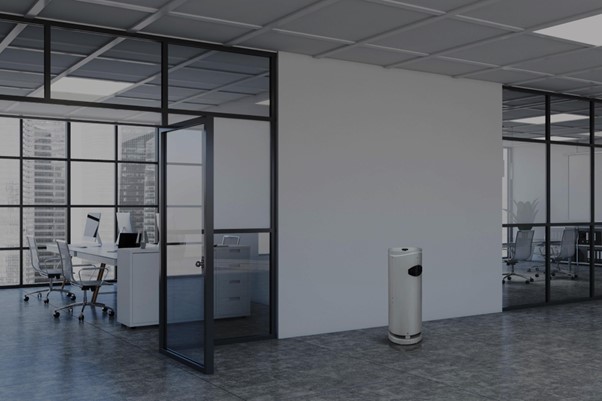

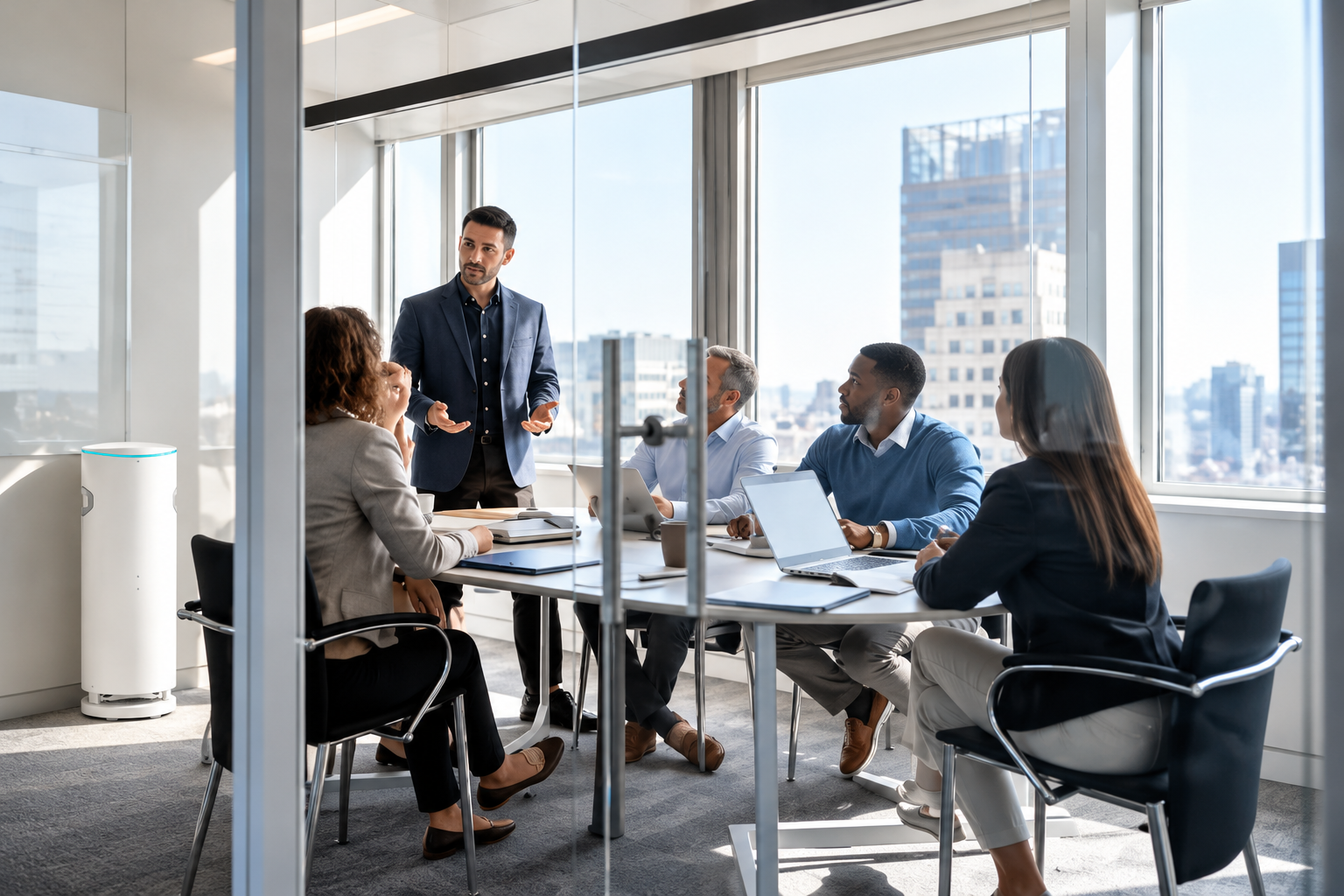

TYVOX Air Sterilizer in office environment

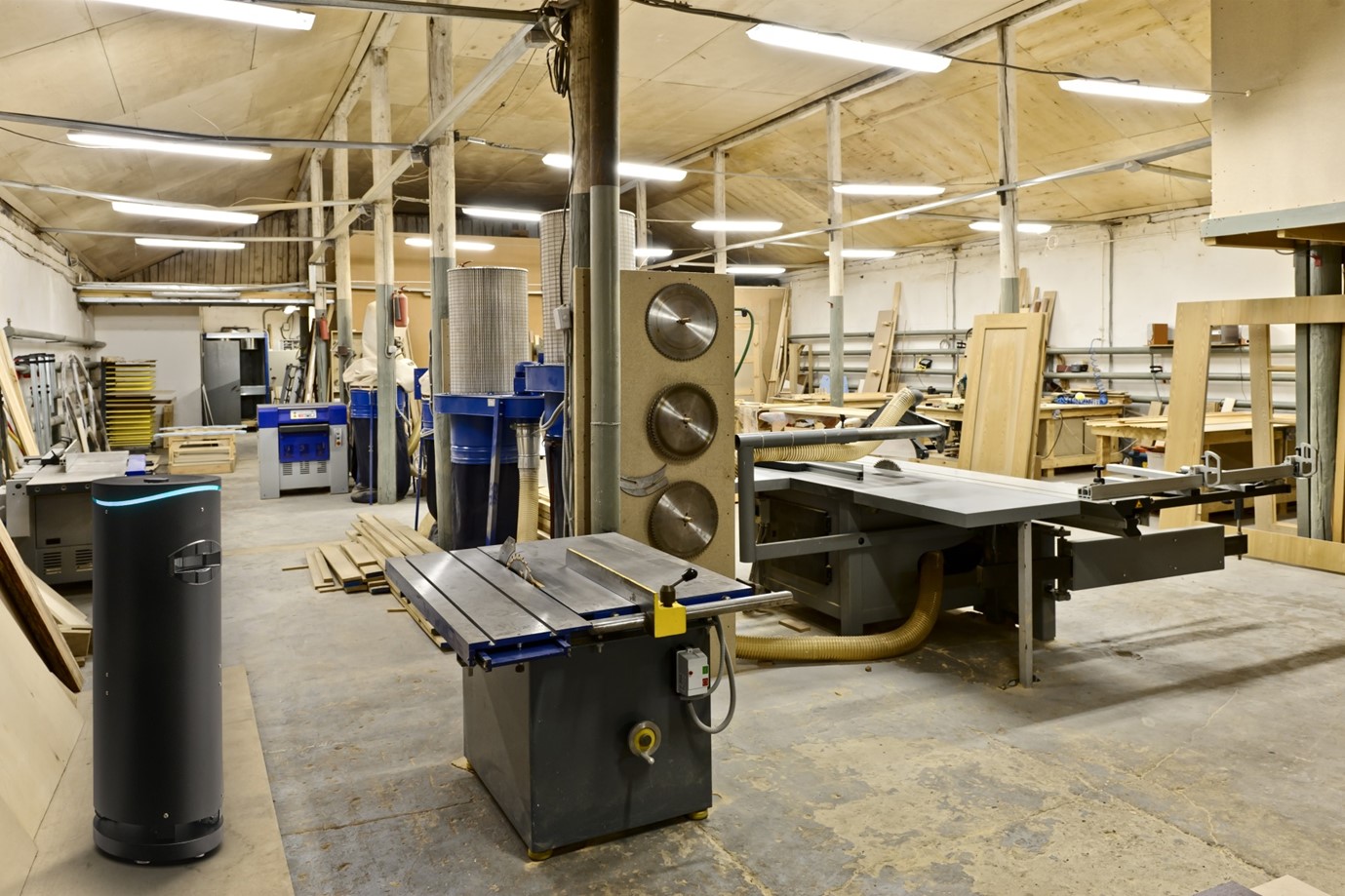

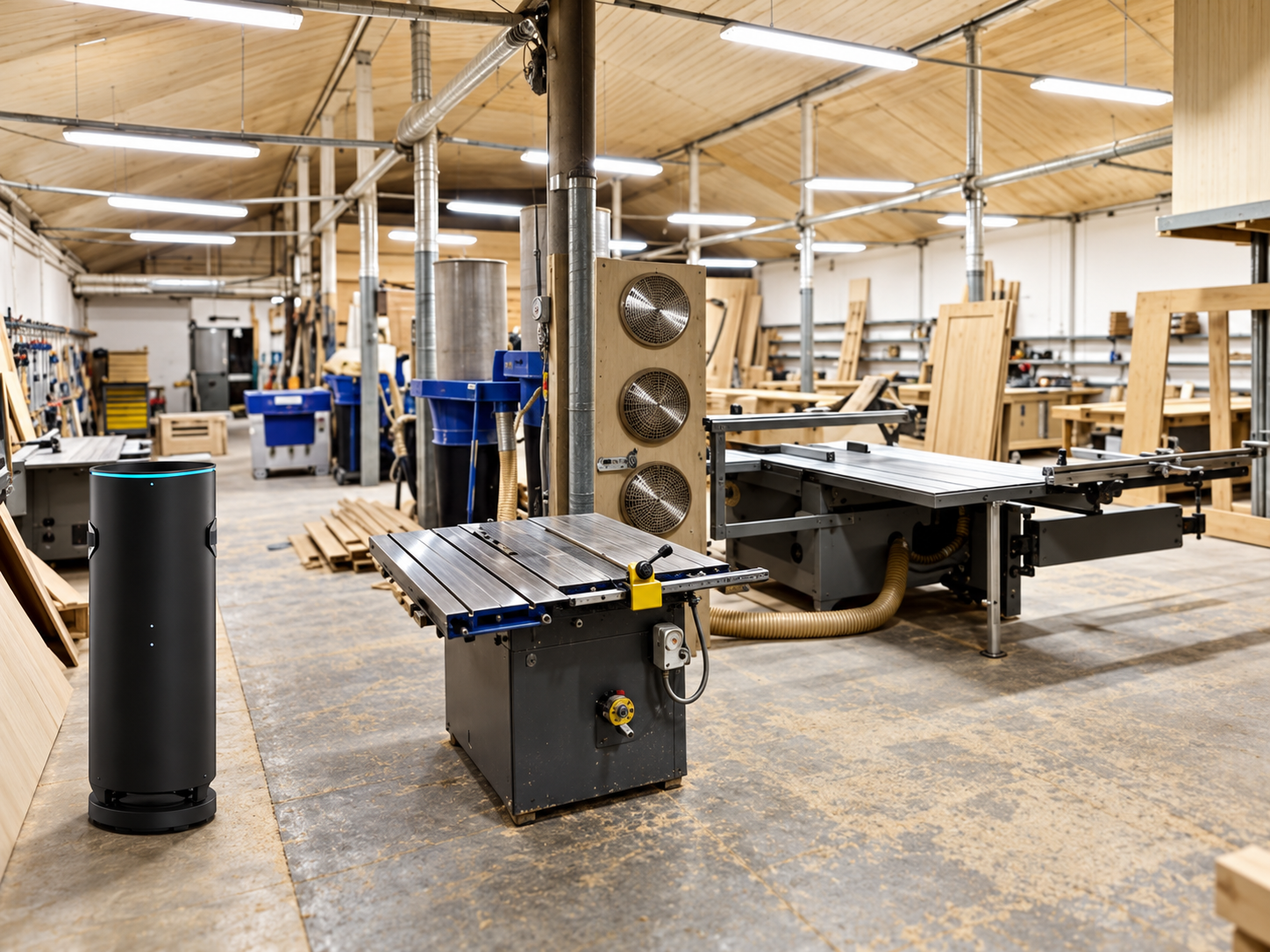

TYVOX Air Sterilizer in workshop environment

Workshop & Industrial Environments

TYVOX can also be used in workshops and other indoor industrial
spaces to support air filtration where dust, particulate matter
and odors may be present.

Healthcare & Treatment Areas

Suitable for treatment rooms, clinics and similar indoor
environments where additional air filtration may be beneficial.

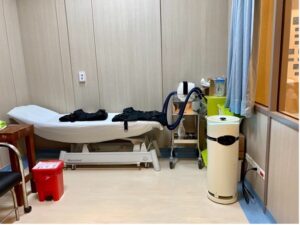

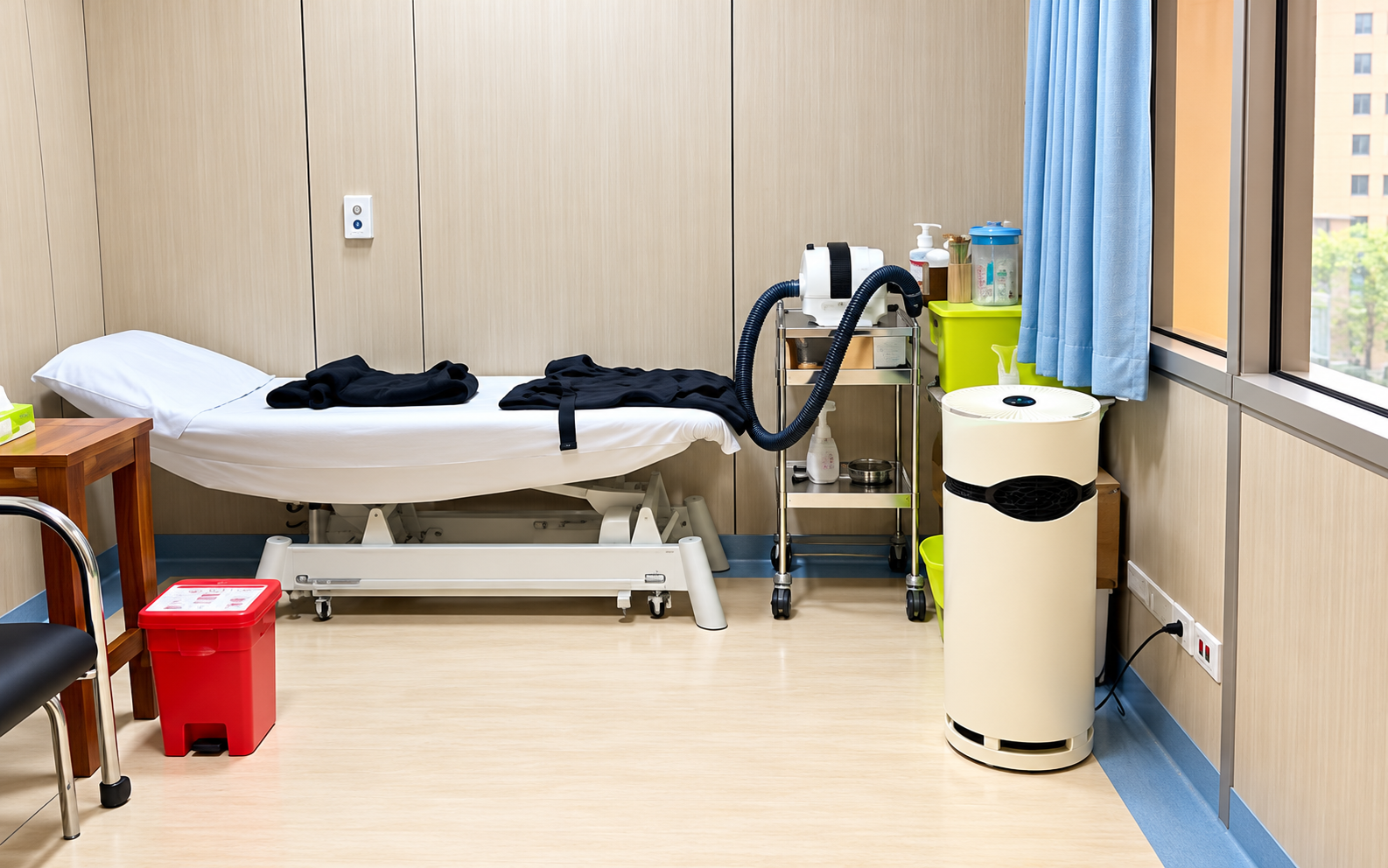

TYVOX Air Sterilizer in healthcare treatment room

Tested Performance & Certification

Independently Tested Performance

TYVOX product documentation references independent laboratory
testing for particulate removal and antimicrobial performance.

PM2.5 Removal Rate

>99.9%

Antibacterial Effectiveness

Up to 99.9%

Tested against Escherichia coli and Staphylococcus aureus.

Anti-Virus Rate

99.9%

Referenced in Microbac MicroBioTest testing documentation.

Test results refer to specified laboratory test conditions.
Actual performance may vary depending on environmental conditions,
room size, airflow and filter condition.

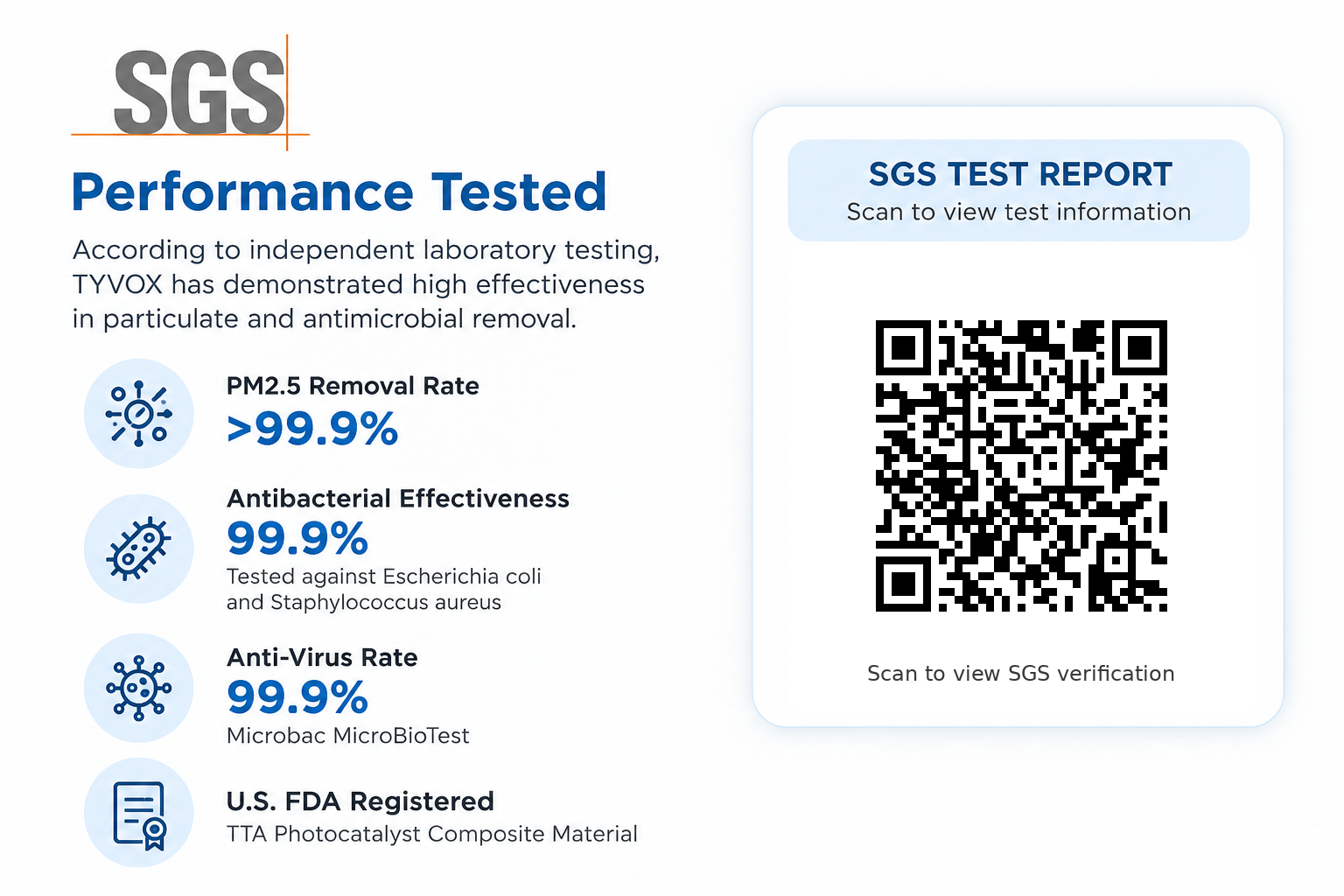

TYVOX SGS tested performance and verification QR code

Scan the QR code to view SGS verification information.

Tyvox Mini Air Purifier

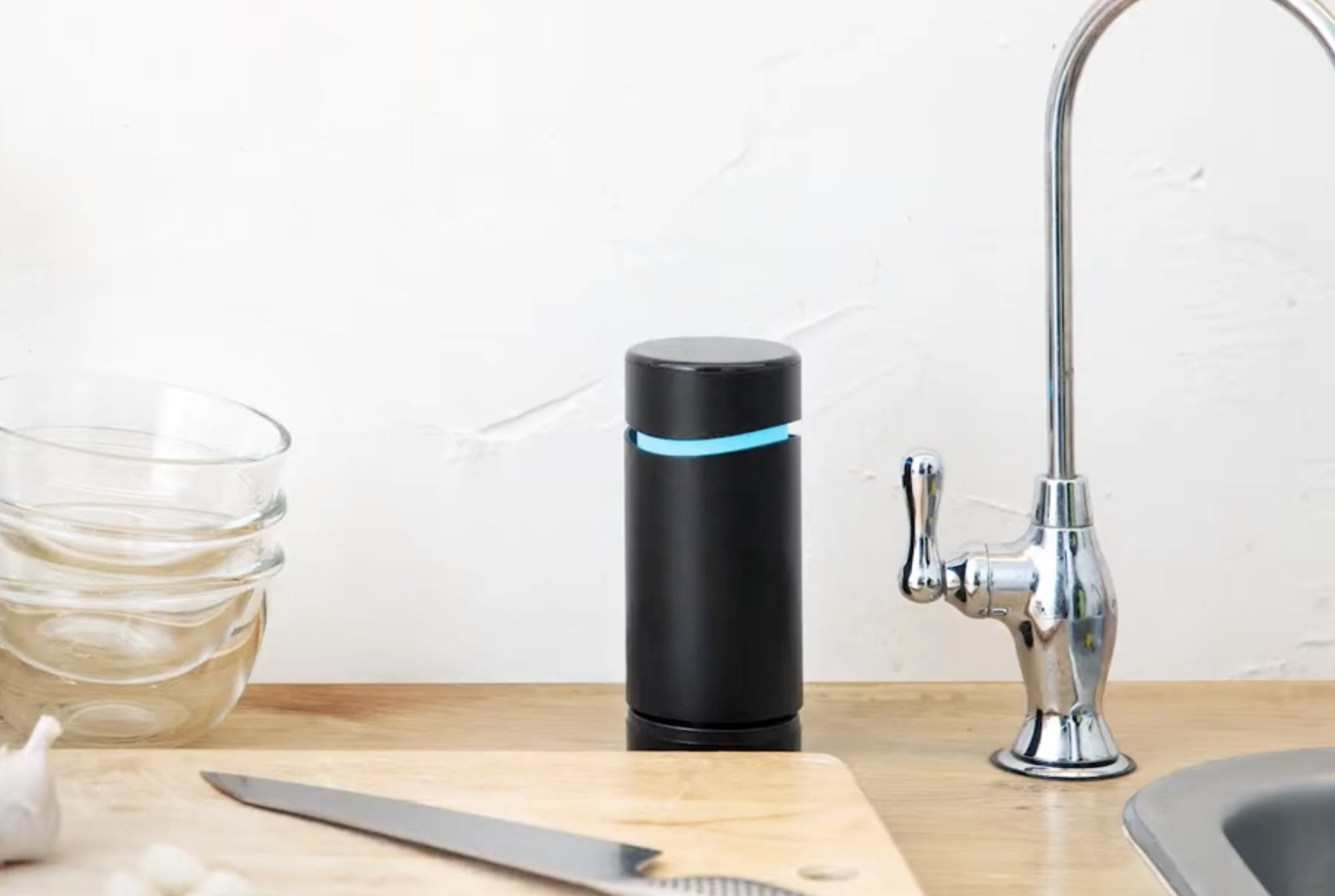

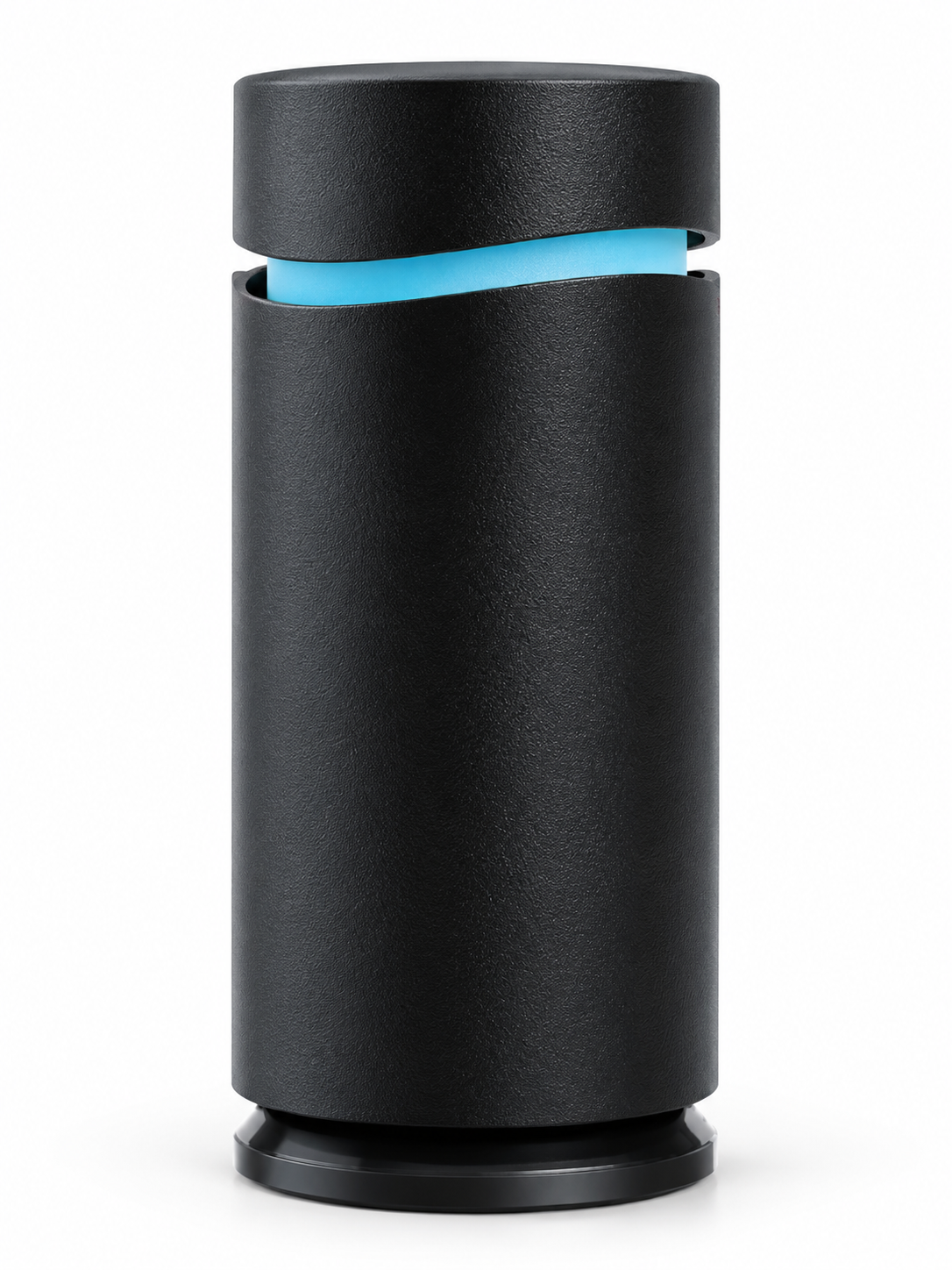

TYVOX Mini Air Purifier

The TYVOX Mini Air Purifier brings TYVOX air
purification technology into a compact and portable form designed
for personal and small-space use.

Its compact design combines an
activated carbon HEPA filter,
photocatalytic oxidation and
negative ion generation within a lightweight unit
that can be powered through USB-C.

At only 420 g and
60 × 60 × 140 mm, TYVOX Mini is designed for
convenient use on desks, workstations and other personal spaces.

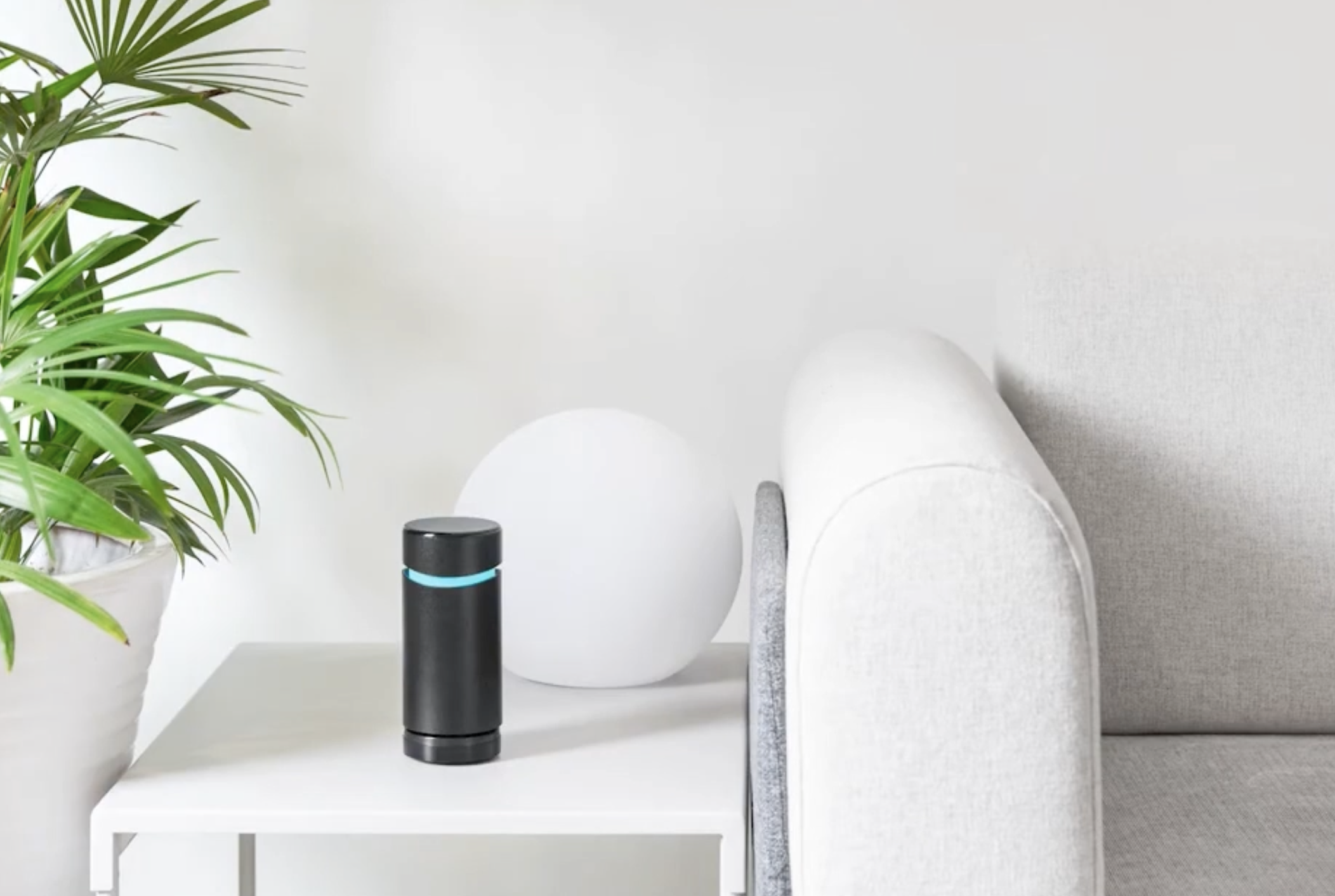

TYVOX Mini Air Purifier

See TYVOX Mini in Action

<br />

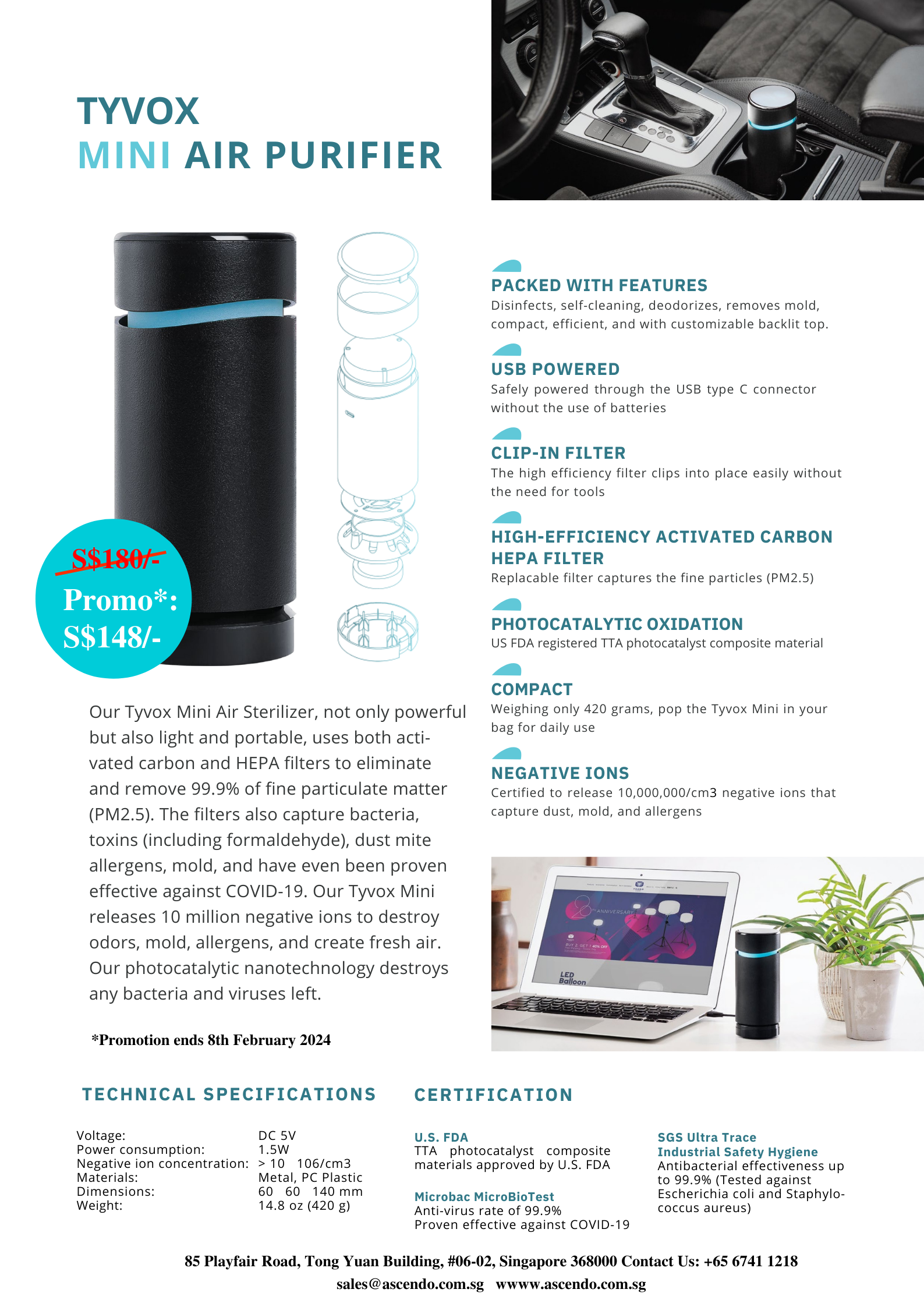

Technical Specifications

Product Parameter	Specification
Power Supply	DC 5V
Power Consumption	1.5W
Negative Ion Concentration	>10 × 10⁶ / cm³
Material	Metal / PC Plastic
Dimensions	60 × 60 × 140 mm
Weight	420 g

Features & Technology

USB-C Powered

USB-C power provides a convenient connection for portable
and desktop use.

Activated Carbon HEPA Filter

A high-efficiency activated carbon HEPA filtration system
helps capture airborne particles while helping reduce odors.

Clip-In Filter

The replaceable clip-in filter design allows convenient
access during routine filter replacement.

Photocatalytic Oxidation

Photocatalytic oxidation is incorporated as an additional
stage within the Mini’s air purification process.

Negative Ion Generation

The unit incorporates negative ion generation as part of its
compact air purification system.

Compact & Portable

Measuring only 60 × 60 × 140 mm, TYVOX Mini is designed to
occupy minimal space while remaining easy to move between
locations.

Where Can TYVOX Mini Be Used?

The compact design makes TYVOX Mini suitable for personal and
small-space applications such as:

Office Desks

Workstations

Study Areas

Reception Counters

Personal Spaces
