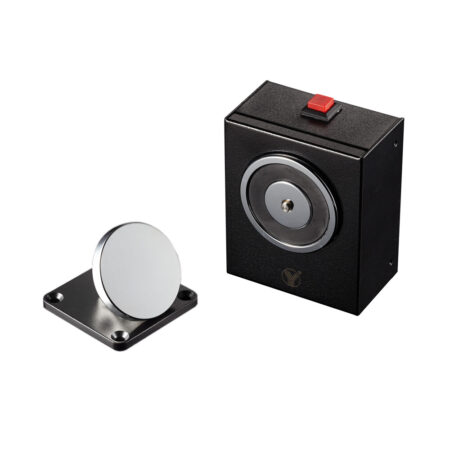

YD-605 Floor and Wall Mount Door Holder

YD-605 Floor and Wall Mount Door Holder

YD-605 Floor and Wall Mount Door Holder

YD-605 Floor and Wall Mount Door Holder

Designed for fire-rated and smokeproof door applications, this electromagnetic door holder securely retains doors in an open position during normal operation while enabling automatic release during emergency situations. When connected to a fire alarm system, the unit releases immediately upon alarm activation, allowing doors to close and assist in smoke containment and fire compartmentation.

With a holding force of 70kg (140lbs), the solution provides reliable door retention for both single and double smokeproof doors. Flexible wall or floor mounting options allow installation in a wide range of building layouts, making it suitable for corridors, stairwells, lobbies, evacuation routes, and other critical fire safety areas.

Built with a corrosion-resistant housing, zinc armature, and high-temperature protective finish, the device is engineered for long-term durability in demanding commercial and industrial environments. Support for both 12VDC and 24VDC operation, along with optional manual release functionality and monitoring outputs, enables seamless integration with fire alarm, access control, and building management systems.

Loading...

Description

Product parameter Parameter Description
Dimensions 118Lx93Wx110H(mm)
Holding Force 70kg(140Lbs)±10%
Voltage Default : 24VDC ,12VDC(Adjustment)
Current Draw 12V/140mA 24V/70mA
Suitable for All Kinds of Single & Smokeproof Door
Signal Output NO (Green)/ NC (Yellow)/ COM (White)(YD-605-S)
Surface Temp ≤+20°C
Operating Temp -10 ~ + 55°C (14-131F)
Suitable Humidity 0 ~ 90% (relative humidity)
Finishes for Shell High Temperature Paint and Environmental Protection
Finishes for Armature Zinc
Weight 1.4kg
Certification CE-EMC FCC EN1155 EN1634-1

Benefits



Certified to CE, EMC, FCC, EN1155, and EN1634-1 standards, it delivers dependable performance while helping facilities meet modern fire safety and life safety requirements.



Supports Fire Safety Compliance

Helps ensure fire-rated doors automatically close during emergencies, supporting smoke control and fire compartmentation strategies.



Improves Building Accessibility

Keeps doors open during normal operation, allowing smooth movement of people, equipment, and materials throughout the facility.



Flexible Installation

Wall and floor mounting options provide greater installation versatility for different door configurations and building designs.



Reliable Long-Term Operation

Durable materials and corrosion-resistant finishes help reduce maintenance requirements and extend service life.



Seamless System Integration

Monitoring outputs allow easy connection to fire alarm systems, access control systems, and building management platforms.



Enhanced Protection in Emergency Situations

Works with fire alarm systems to automatically release doors when required, improving occupant safety and emergency response effectiveness.



Commercial Office Buildings

Ideal for office complexes and corporate facilities where fire-rated doors must remain open during normal operations while automatically closing during emergency situations.



Shopping Malls and Retail Centres

Supports safe and efficient customer movement throughout retail environments while maintaining compliance with fire safety regulations.



Hospitals and Healthcare Facilities

Provides unobstructed access for patients, medical staff, wheelchairs, hospital beds, and equipment while ensuring fire doors close automatically when required.



Schools, Colleges, and Universities

Suitable for educational institutions where high pedestrian traffic requires doors to remain open during daily activities without compromising fire protection measures.



Hotels and Hospitality Properties

Enhances guest convenience by holding corridor and common area doors open while supporting emergency evacuation and fire containment procedures.



Warehouses and Logistics Centres

Helps maintain efficient movement of goods, pallets, and equipment through fire-rated openings while ensuring automatic door release during alarm conditions.



Manufacturing and Industrial Facilities

Designed for factories, production plants, and industrial sites where fire compartmentation is essential for protecting personnel, equipment, and assets.



Government Buildings

Suitable for municipal offices, administrative facilities, courthouses, and public service buildings requiring reliable fire door retention and release systems.



Airports and Transportation Hubs

Supports smooth passenger flow in terminals, stations, and transit facilities while maintaining compliance with life safety and fire protection requirements.



Fire Safety and Access Control System Installations

Integrates seamlessly with fire alarm systems, emergency evacuation systems, access control platforms, and building management systems for centralized monitoring and control.



Healthcare and Assisted Living Facilities

Well-suited for nursing homes, rehabilitation centres, and assisted living environments where accessibility and occupant safety are critical.



Educational Campuses and Public Institutions

Provides dependable door retention for libraries, auditoriums, laboratories, and other public-use spaces that require controlled fire door operation.



Hospitality, Leisure, and Entertainment Venues

Ideal for convention centres, theatres, cinemas, sports facilities, and event venues where large numbers of occupants require safe and efficient movement throughout the building.



High-Traffic Corridors and Evacuation Routes

Commonly installed in corridors, stairwells, lobbies, and designated escape routes to improve accessibility while maintaining emergency fire protection functionality.
