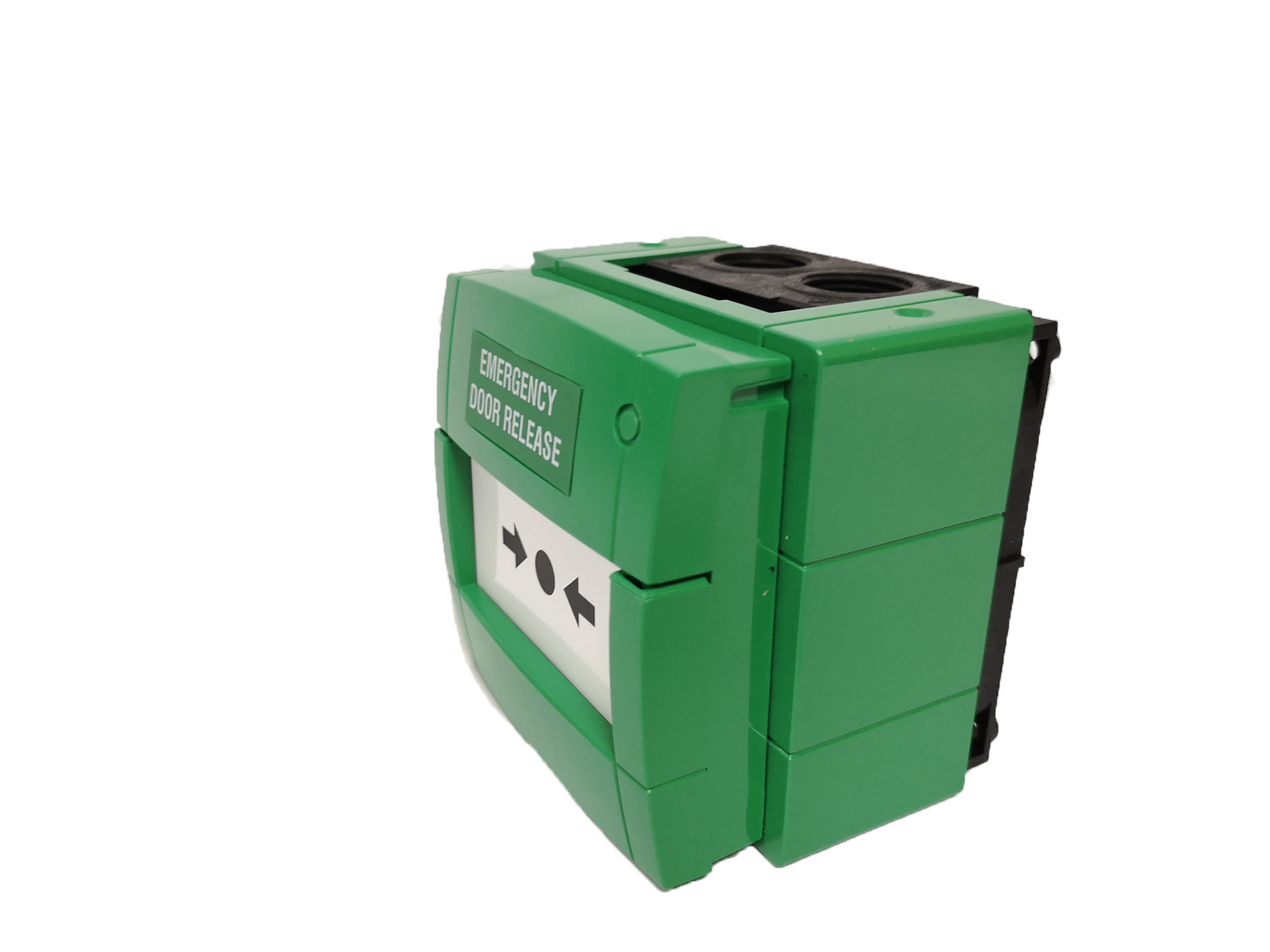

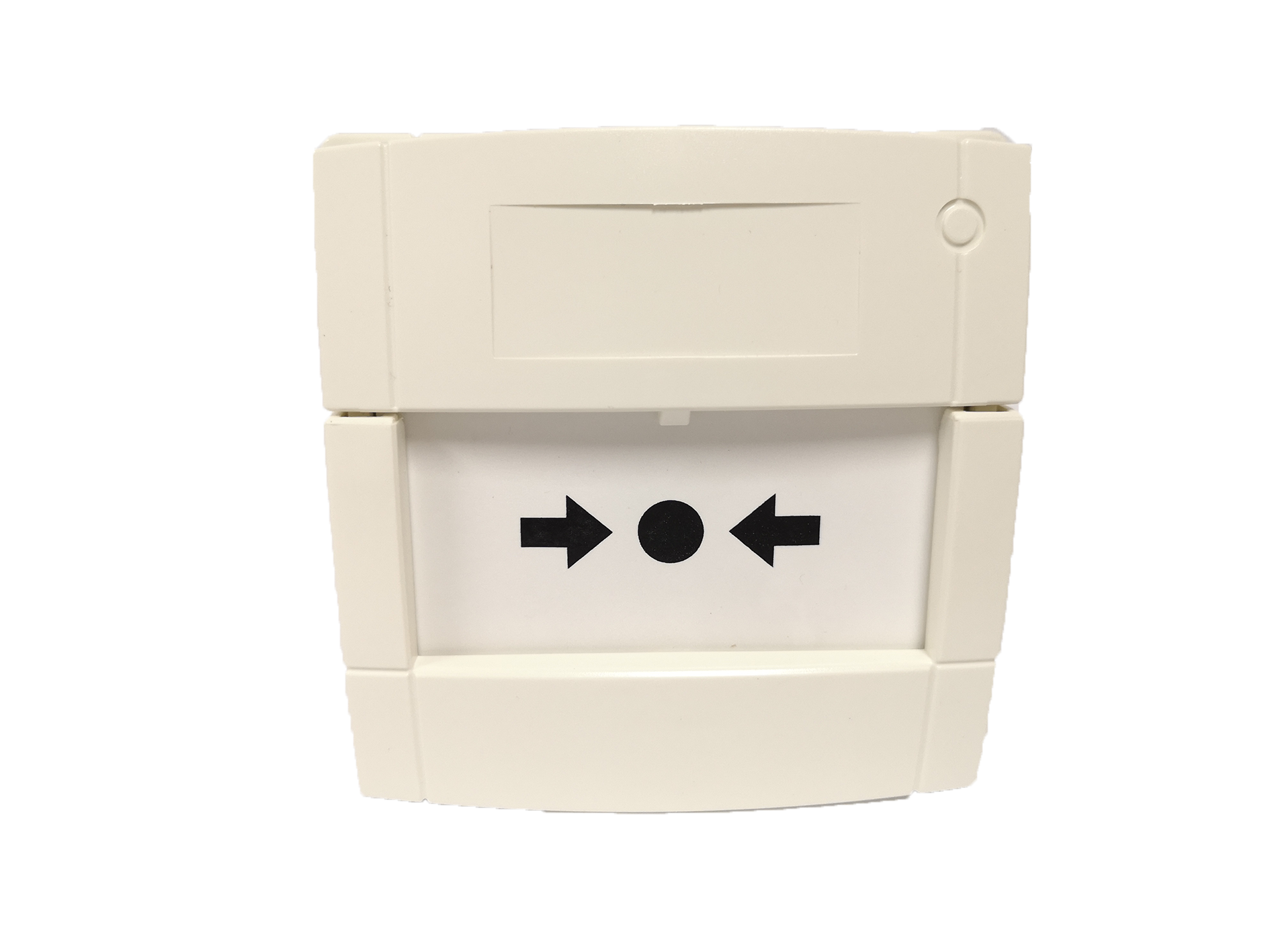

Installation efficiency, flexibility and full compliance with the latest standards are the heart of the new WCP Outdoor Call Point. The outdoor Call Point is an IP67 sealed manual call point product. The enhanced environment protection allows the unit to be installed in many external environments where water and dirt are likely to be present, making it a true waterproof and outdoor product
Product parameter Parameter Description
Connection Details See Figure. 1
Cable Termination 0.5 – 2.5mm²
Maximum Voltage 30V DC
Switch Rating 2 Amps
Product parameter Parameter Description
Humidity 0 – 93 ± 3% non-condensing
Operating Temperature -25°C ~ 70°C
Storage Temperature -25°C ~ 70°C
Ingress Protection (IP) Rating IP67
Certificate For RoHS, WEEE & REACH
Product parameter Parameter Description
Material PC/ ABS
Weight 350gm
Color White/ Green
