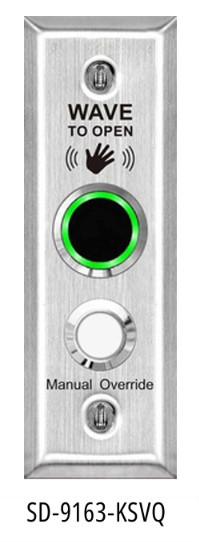

SD-9163 Outdoor Wave-to-Open Sensors

SD-9163 Outdoor Wave-to-Open Sensors

SD-9163 Outdoor Wave-to-Open Sensors

SD-9163 Outdoor Wave-to-Open Sensors

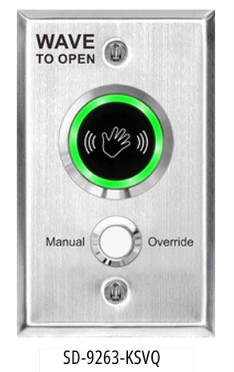

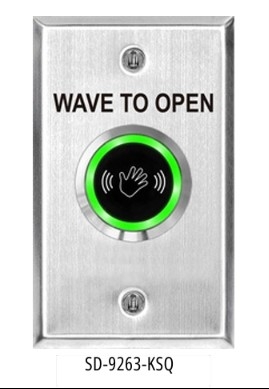

The Outdoor Wave-to-Open Sensor is a full
featured exit plate which uses IR technology to allow egress
from a protected area or activate a device with the simple wave
of a hand. Since no touch is required, this sensor is suitable for
use in hospitals, clinics, labs, cleanrooms (to reduce the risk of
contamination), schools, factories, or offices.

Loading...

Description

Product parameter Parameter Description
Power 12~24 VDC
Relay type SPDT dry contact, 1.2A@24VDC
IP rating IP65
Response time 10ms
Temperature range -4°~131° F (-20°~55° C)
Range 2″~7″ (5~18 cm)
Housing Finishing Stainless steel plate
Environment Weather resistant for outdoor use (except
models with mechanical override button)
