The Rosslare AYC-F64 is an IP65-rated PIN and 125 kHz proximity reader/controller for indoor and outdoor access control. It supports 4–8 digit PIN credentials, EM cards, Wiegand 26-bit or Clock & Data output, and can operate as a 500-user standalone controller when paired with Rosslare PS-x25T intelligent power supplies.
The Rosslare AYC-F64 is a rugged 3×4 backlit
PIN and proximity reader designed for indoor and outdoor
access-control applications.
It supports 4–8 digit PIN credentials together
with 125 kHz EM proximity cards and tags,
giving users the flexibility to access a secured area using
a PIN, proximity credential or, in controller mode, a combination
of both.
Its convertible design allows the AYC-F64 to operate as a reader
with a standard access controller or become a
500-user standalone controller when connected
to a compatible Rosslare PS-x25T intelligent power supply.
PIN Access
Supports 4–8 digit PIN credentials through a highly
visible red backlit keypad.
125 kHz Proximity
Supports 125 kHz EM proximity cards and tags with a
maximum specified read range of up to 80 mm.
Convertible Design
Operates as a standard reader or converts into a
standalone access controller with compatible Rosslare hardware.
Up to 500 Users
Supports up to 500 users when operating in controller mode
with a compatible PS-x25T power supply.
IP65 Protection
Epoxy-potted and weather-resistant construction for
indoor and outdoor access-control installations.
Tamper Detection
Back and cover optical tamper detection provides an
additional layer of protection for the reader.

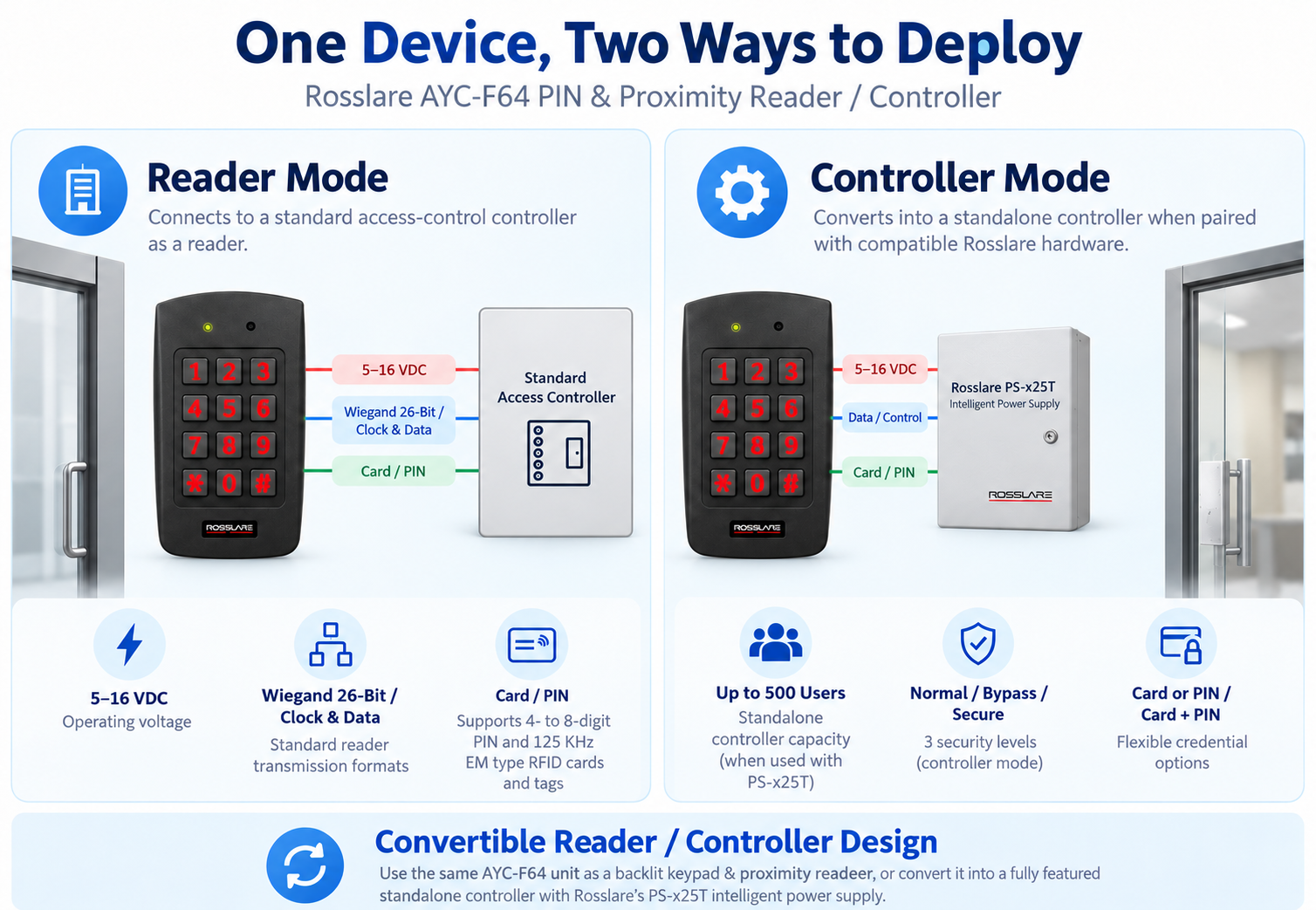

One of the AYC-F64’s key advantages is its convertible
reader/controller design. It can be connected to an existing
access-control system as a reader, or paired with compatible
Rosslare hardware to operate as a standalone controller.
| Product Type | Convertible PIN & Proximity Reader / Controller |
| Keypad | 3×4 backlit keypad |
| PIN Credentials | 4–8 digit PIN credentials |
| Proximity Technology | 125 kHz EM proximity cards and tags |
| Maximum Read Range | Up to 80 mm (3.2 in.) |
| Reader Mode Voltage | 5–16 VDC from a standard controller |
| Card Output | Wiegand 26-Bit or Clock & Data |
| PIN Transmission | 8 selectable PIN transmission formats |
| Indicators | Two tri-color LEDs and built-in sounder |
| Tamper | Back and cover optical tamper detection |
| Protection | IP65 weather-resistant enclosure |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Operating Humidity | 0–95% non-condensing |
| Dimensions | 120 × 76 × 21 mm |
| Weight | 215 g |
| Warranty | 5-Year Limited Product Warranty |
In Reader Mode, the AYC-F64 connects to a
standard access-control controller.
Card credentials can be transmitted using
Wiegand 26-Bit or Clock & Data,
while multiple PIN transmission formats can be selected
according to the connected system.
Reader Mode operates from
5–16 VDC.
When connected to a compatible Rosslare
PS-x25T intelligent power supply,
the AYC-F64 automatically converts into a standalone
access controller.
Controller Mode supports up to
500 users and provides Normal,
Bypass and Secure operating modes.
Secure Mode can require
card + PIN for stronger access verification.
🔐 Three Controller Security Modes
Bypass: Free entry.
Normal: Card or PIN required.
Secure: Card + PIN required.

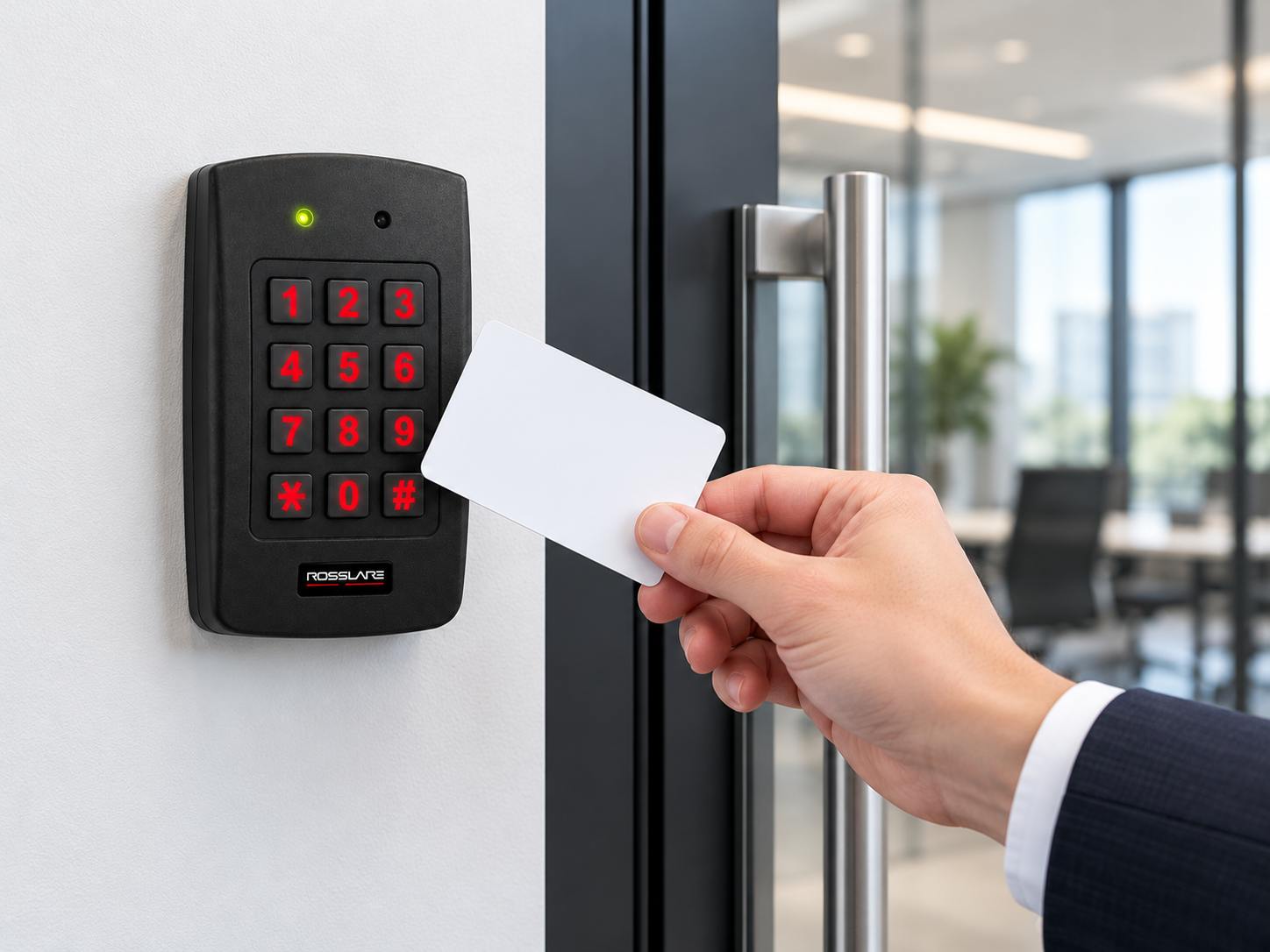

The AYC-F64’s sealed, IP65-rated housing and backlit keypad
make it suitable for access points that require reliable
PIN and proximity authentication in both indoor and
outdoor environments.
🏢 Offices
🏠 Residential
🏬 Commercial
🚪 Controlled Doors
🌦️ Outdoor Entrances
Contact our team to discuss the Rosslare AYC-F64,
system compatibility and your access-control requirements.
