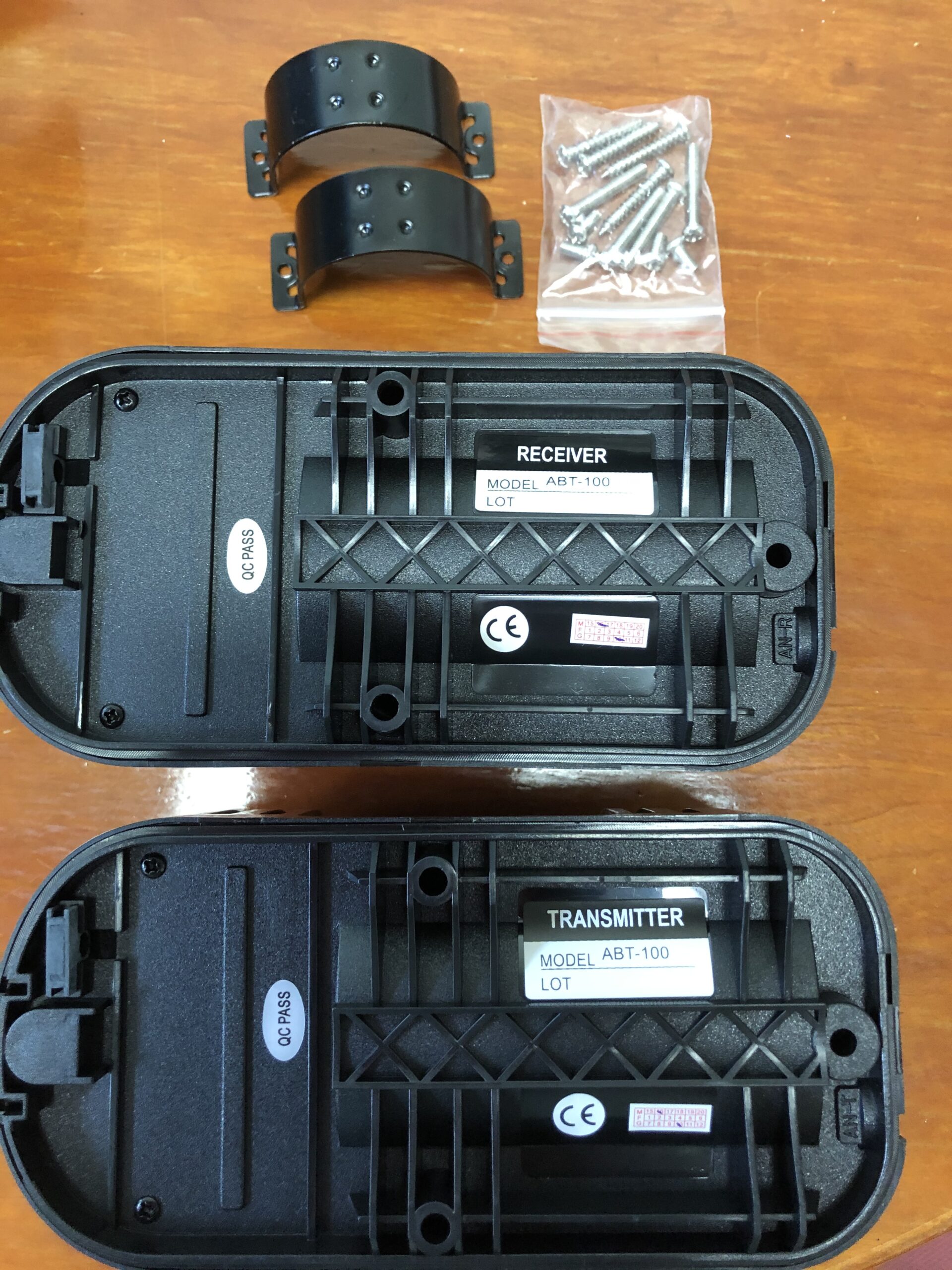

ABT-100 – Outdoor Beam Sensor

Description

Product parameter	Parameter Description
Number of Beams	2 Beams
Detection Mode	2 beams blocked simultaneous
Response Time	50 ~ 700m sec, adjustable
Contact Output	Relay contact output NO or NC
Contact capacity	AC/ DC 30V 0.5A max
Power Voltage	DC 13.8 ~ 24V, AC 11 – 18V
Power Consumption	65mA max
Range of Operating Temperature	-25 °C ~ 55 °C
Range of Operating Humidity	5% ~ 95% RH (relevant humidity)
Alert distance	100m (outdoor); 300m(indoor)
