IR-T4B Touchless Surface Mount Exit Button

Description

👋 IR-T4B Touchless Surface Mount Exit Button

The IR-T4B is a slim touchless surface-mount exit
button designed for access control and door release applications.
It allows users to request exit without physically touching the device.

The unit operates on DC12–24V and provides
NO / NC / COM output contacts, with an adjustable
5–20 cm sensing distance and
0–30 second time delay.

👋

Touchless Operation

Activates without physical contact.
Move a hand within the configured sensing area
to initiate the exit request.

📏

5–20 cm Sensing

Adjustable sensing distance allows the response range
to be configured according to the installation environment.

⏱️

0–30s Adjustable Delay

Adjustable output timing provides flexibility for
different access control and door release requirements.

🔵 🟢

Two-Colour LED

Blue indicates standby operation, while green provides
a clear visual response when activation is detected.

DC12–24V

•

NO / NC / COM

•

Surface Mount

•

500,000 Tested Cycles

⚙️ Technical Specifications

Product Parameter	Parameter Description
Product Type	Touchless Surface Mount Exit Button
Size	115 × 40 × 14 mm
Weight	0.08 kg
Power Supply	DC12–24V
Output Contact	NO / NC / COM
Material	ABS
LED Indicator	Standby Blue / Response Green
Sensing Distance	Adjustable 5–20 cm
Time Delay	Adjustable 0–30 seconds
Mechanical Life	500,000 tested cycles
Installation	Surface Mount
Operating Temperature	-20°C to 55°C
Operating Humidity	0–95% RH

How Does the Touchless Exit Button Work?

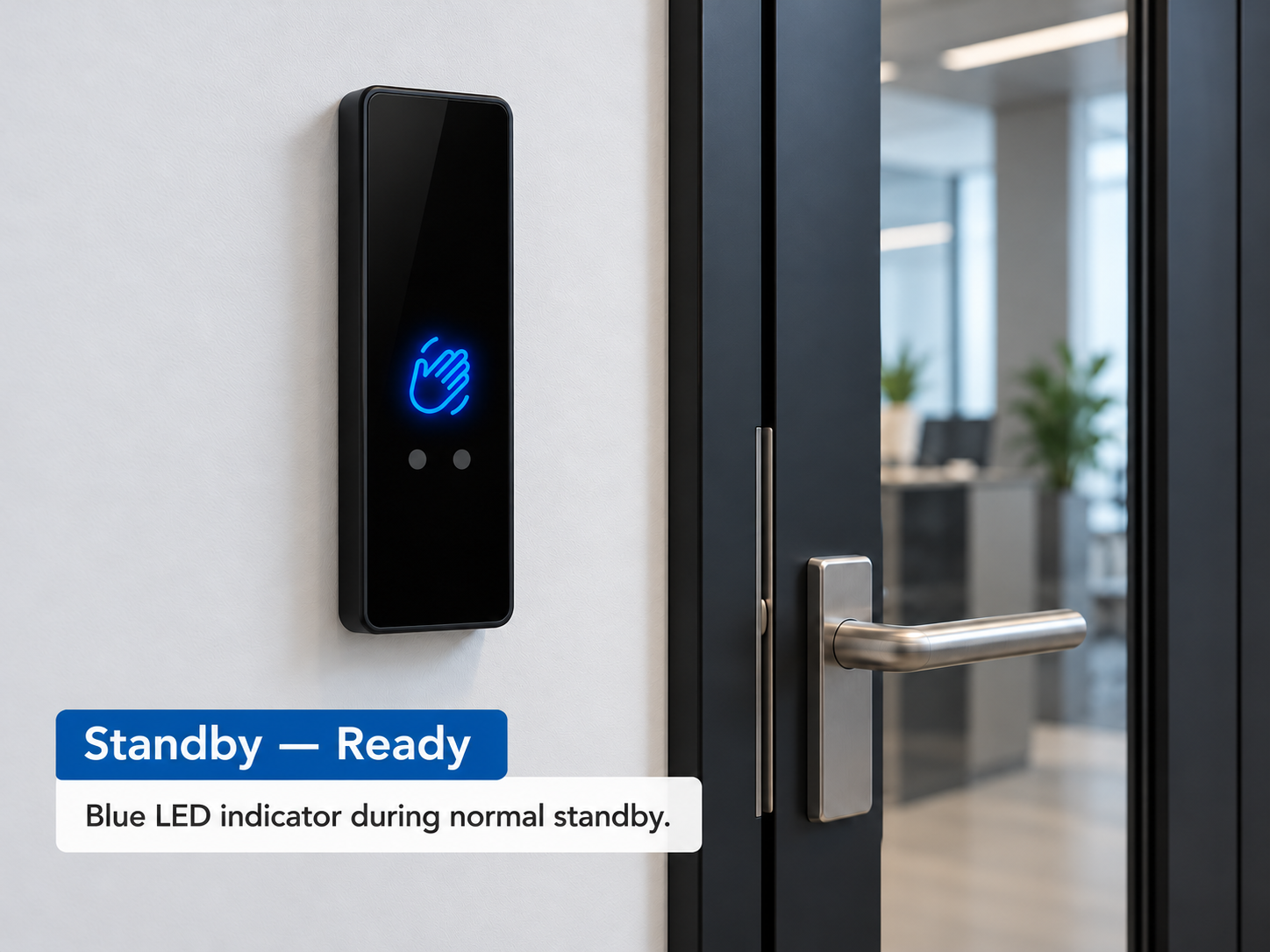

🔵 Standby — Ready

During standby operation, the IR-T4B displays a
blue LED indicator.

The sensor monitors the configured detection area and
remains ready to respond when a hand approaches.

IR-T4B touchless exit button standby blue LED

IR-T4B touchless exit button activated green LED

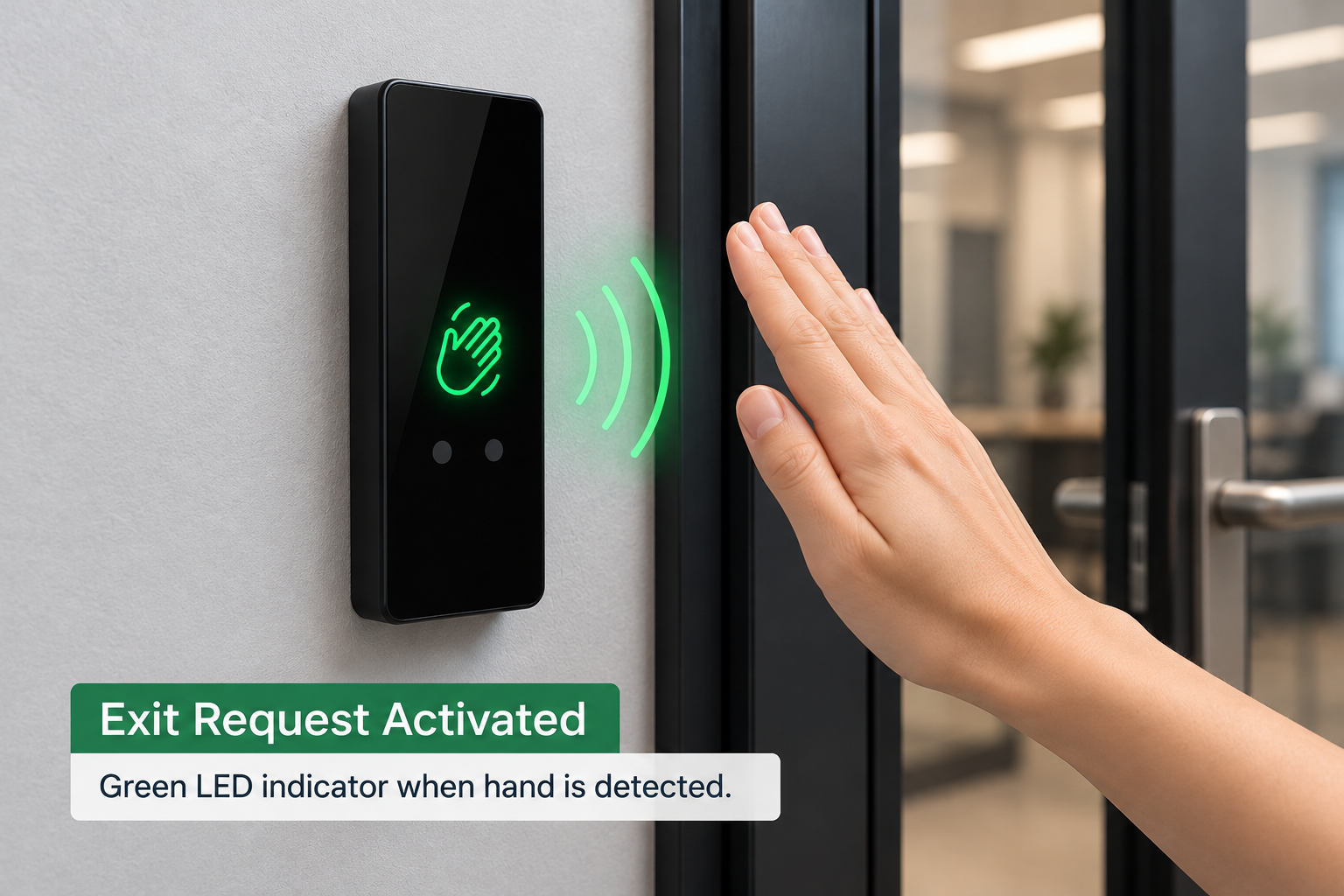

🟢 Hand Detected — Exit Request Activated

When a hand enters the configured sensing range, the
sensor detects the activation without requiring physical contact.

The LED changes from blue to green to
indicate a response, while the
NO / NC / COM output changes state
according to the connected access control system.

The sensing distance can be adjusted between
5–20 cm.

Features & Applications

🔐 Suitable for Access Control Applications

The IR-T4B is suitable for access control and electric locking
applications requiring a compact contactless exit request input.
Its NO / NC / COM contacts provide flexible
connection options for compatible equipment.

✅ Key Features

Touchless operation
Adjustable sensing distance:
5–20 cm
Adjustable time delay:
0–30 seconds
NO / NC / COM output contacts
Wide DC12–24V operating voltage
Surface-mount installation
Blue standby and green response LED indication
LED indicator colours can be customised
Customisable outdoor waterproof function available
500,000 tested mechanical life

🏢 Applications

Office Entrances

Access Control Systems

Electric Lock Release

Commercial Buildings

Healthcare Facilities

Schools & Institutions

💡 LED Indicator Options

The standard configuration uses a
blue LED during standby and a
green LED during response.
LED indicator colours can also be customised according
to project requirements.
