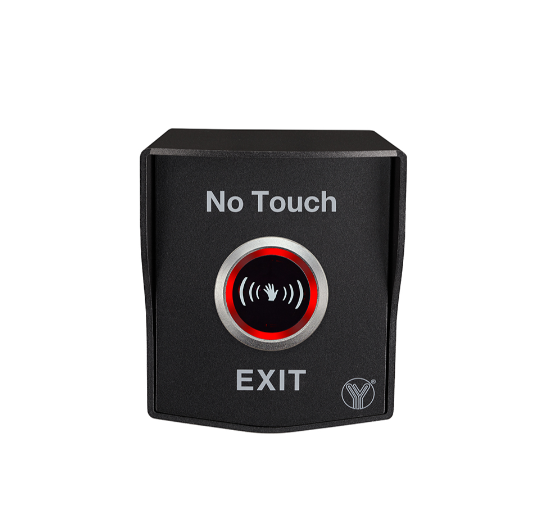

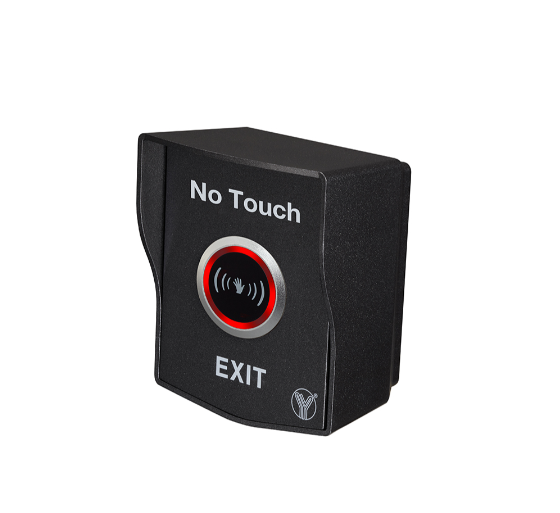

The ISK-842B(LED)-WP is an infrared sensor exit button made of stainless steel, with dimensions of 78mm in length, 91.5mm in width, and 61mm in height. It meets American standards and is suitable for a range of lock types. The induction distance is adjustable, allowing for a maximum of 10cm, and the time delay can be set to 3 seconds. The red LED indicator shows that the power is on (standby), while the green LED indicator confirms that the device is operational (sensation).
Product parameter Parameter Description
Feature Mortise mount
Dimensions 78Lx9.51Wx61H(mm)
Input DC12 ~ 24
Current ≤70mA
Contact Rating 1A@30VDC
Output contact NO/ NC/ COM
Mechanical life 100,00 tested
Suitable for Door Hollow Door
Structure Zinc alloy material
Surface Treatment Zinc alloy with black paint treatment
Operating Temp -20°C ~ +55°C (14 – 131F)
Suitable humidity 0 – 95% (relative humidity)
Detection Range 10cm (±20%)
Time delay 3S
LED Indicator Red LED indicator: Power ON (standby); Green LED indicator: Power ON (sensation)
Waterproof Level IP67
Weight 0.5kg
Certification CE-EMC CE-LVD FCC RoHs REACH WEEE
