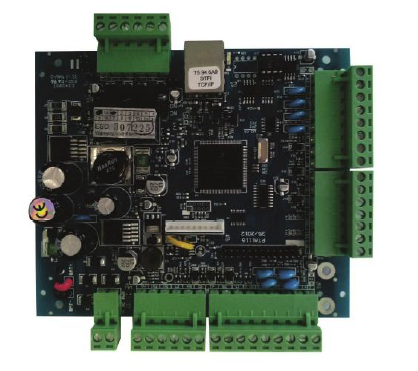

Falco IP Door Controller

Description

Product parameter Parameter Description

CPU Cold Fire 32 bits, 60 MHz

Memory EEPROM and Flash

Card Capacity 70, 000 (expansible to 150, 000)

Event capacity on memory buffer 40, 000 (expansible to 80, 000)

Inputs/ Outputs 12 in/ 2 out (according to model)

Feature Output Tamper

Readers 2 (int/ ext) for simple door, or 4 (2 int/ 2 ext) for 2 doors

Compatible card protocols Wiegand standard, 26, 34, 35, 42 bits or other personalized formats

Network Protocols TCP/ IP, ARP, WEB

Time Configuration 50, with 3 daily intervals

Time Zones 99

Access Levels 999

Holidays 50

Power Source Requirement 14, 5 VCA

Battery Charger 7AH/ 12 VCC

Communication TCP/ IP 10/ 100 Mbps

Output Potency Electronic power source set to 12 VCC for readers, locks and other devices)

Board Dimensions 137 x 117(mm)

Operating Temperature 0 to 60°C

Humidity 0 ~ 95% without condensation

Encrypted AES-128 (Optional)

Benefits

Integrated Power Supply Module with Backup Battery Charger

The IP controller has an integrated power source circuit with a backup battery charger.

Autonomy

The controller is therefore able to charge all devices connected to it, from locks to readers, and up to the exit maximum nominal current of 2A @ 12 VCC.

Power monitoring

AC/DC power monitoring, warning the software operator in case of any problem. This function dismisses the installation of a specific CA power backbone for the access control.

Peer to Peer technology

The controllers are P2P network devices. This enables the ,controllers to talk amongst themselves and therefore, enables savings in installation when integrated to fire systems, for example.
Among several other advantages, the P2P technology enables the controller to be capable to communicate with other controllers in the same network, even if the server is off-line, not depending on communication with the server to guarantee correct functioning of the Global Anti-Passback.

Native TCP/IP

Are controllers with native IPs, that is, the data communication speed is immensely faster and reliable than in a traditional serial system.

Characteristics

Adjustable Band Width

Data transmission in high speed with low band consumption (Push technology), guarantees information in real time for the users;

Installation Flexibility

Ideal to be used within the infrastructure of the existing network;

Client x Server Environment

Communication between application server and controllers occurs only when there is a new event to be sent (Push technology);

Point-to-Point Communication

The controllers communicate amongst themselves without the need for the server to be on-line (Native TCP / IP);

Patented Algorithm

Guarantees the search for a valid card/non valid card in less than 1 second, for a maximum of 150,000 cards registered on the controller on off-line mode;

Safe Technology

• Proprietor protocol guarantees data transmission inviolability;

• Encrypted AES-128 bits; (optional)

• The IP controller stores cards, access levels, holidays and other permissions on the controller’s off-line memory, avoiding to work with White/Black lists, making the operations much safer and reliable;

• Automatic card cancellation via hardware;

• Power source integrated to the controller, with integrated battery charger, provides stable functioning even in case of power failure;

• Easiness in the architecture of positioning the controllers and its relays in a safe area

Applications

The experience of numerous projects and many years of development has enabled FALCO to create custom-made features for each of the most important access control applications:

Door Control

The 2 doors controller enables the control of up to two doors with up to four readers. It may be connected to the network using Wi-Fi through an access point.

Elevator Control

The IP Lift controller enables the control of up to 64 floors, utilizing up to 8 MOD-8-ELV modules. With this controller, depending on the level of access the user has, the system will allow him to have access to authorized floors only.

Turnstile Control

The IP Turnstile controller is used specifically for the control of turnstiles. It is able to control turnover and to control pictograms.

Integration with Alarms

The IP Alarm controller enables the control of up to 32 alarm entries using up to 4 MOD-8 ALM modules. PIRs, magnetic or any other alarm device may be connected to it. The controller permits enabled cards to set or disarm the alarm system, providing the user with the most important functions of a conventional alarm system.

Parking Control

The IP Car parking controllers have very particular functions, such as use in conjunction with mass loop.

Rack Control

Increasing the security of access to the servers is a common and basic reality in many companies. With the IP controller system, the client may control and monitor the opening of their rack doors, as well as have the history and online access in his hands through the FALCO WEB / ENTERPRISE platform. With FALCO’s Rack control system it is possible, through the use of a single reader and controller, to control up to 16 rack doors, and to monitor up to 16 door sensors. It is also compatible with the TZ rack control system.
