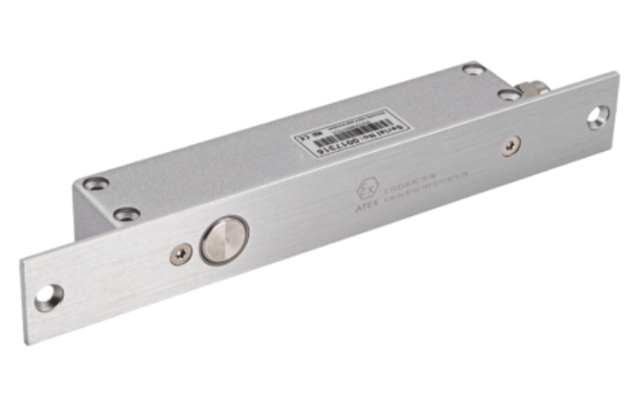

180-degree two-way electric bolt also means serving the purpose of opening doors in both direction. It will either be mounted in or outward swinging doors as matching brackets are provided for mounting. Many brackets are available to fit different types of doors, including the narrow ones.
Product parameter Parameter Description
Feature Fail Safe
Face Plate 220Lx30Wx37H(mm)
Strike 110Lx30Wx3H(mm)
Decorative panel 220Lx35Wx0.7H(mm)
Bolt 16mmDIA, stainless steel 116mm throw
Voltage 12VDC(Need Order 24VDC)
Current 500mA
Solid Bolt Polishing housing, 800kg Holding Force
Suitable for wooden door, glass door, metal door
Signal Output Door signal (NO/COM); Lock signal (NO/NC/COM)
Waterproof Level IP67
Induction Distance 8mm
Weight 0.6kg
Certification number ECM 23 ATEX-B DN 89
ATEX || 1G Ex ib ||C T6 Gb / || 2D Ex ib |||C T85°C/ T100°C Db
180 degree two-way door open
Electric drop bolt is designed for 180 degree two-way door. Certainly, the bolt lock can be installed both doors that open inward and outward.
Matching bracket installation
Different brackets are available according to different types of doors. For example, narrow door, frameless door, glass door and inward opening door.
Time delay function
Time delay within (0-9 seconds) is adjustable. The lock can keep in still for a certain time before locking up. This is to prevent the bolt hit the door leaf.
Clipping circuit design
Photoelectric control with low temperature in the bolt lock quickly functions up to 850mA. This can extend the life of the battery.
Photoelectric sensor control
These are super stable, durable, energy space and environmental protective
Intelligent logical circuit design
If any problem happens, it will be locked automatically. This is to prevent the door unlock while in improper position
Electric circuit protection design
when the bolt of the lock extend, IC control will automatically turns off the reed switches. It is to avoid people from interfering the functions of the lock and reed switches the by insert the obstacle to the lock.
